Getting to and things to do in the Deep River (GPS: N4606.064' ; W7729.188'), Upper Ottawa Valley, Ontario, Canada area

'Does the Job' Albacore 6781 Sailing Dinghy using a Firefly main sail for high wind conditions - 3rd September 2007

(Restored to sailing condition using various parts from Valley Marine (Ottawa), The Chandlery (Ottawa), Fogh Marine (Toronto) and Annapolis Performance Sailing, Annapolis (Eastport), Maryland, USA - excellent website to navigate)

Lachlan's Homepage is at http://lachlan.bluehaze.com.au/

[Intro - CranClan] . . [Happening Things] . . [The Daresbury Laboratory Web Ring of Life] . . [NCS - Non-Competitive Scrabble] . . [Garden Gnomes of Daresbury Laboratory] . . [Nature and Local UK Things] . . [USA 2001 and LDEO Columbia University] . . [Historical Literature/Poetry] . . [Music] . . [Misc Things] . . [DL SRS Status] . . [Conference and Travel Things] . . [The Wonders of Team Building] . . [Other People's Homepages] . . [Crystallographic Internet Front] . . [While in Melbourne] . . [Semi Relevant Links]
[Back to Lachlan's Homepage] | [What's New]
[Deep River 2007] | [Deep River links] | [Sailing in Deep River] | [Wildflowers of Deep River, Eastern Ontario]

As per a query on rigging a 1967 Texas Tornado 16.5 dinghy (Sun, 25 Sep 2005) : Clarification on the Rigging of the Mainsheet on the 'Does the Job' Albacore 6781 Sailing Dinghy

Schematic of the mainsheet rigging Albacore 6781 'Does the Job' with Jib rigged up for single handling

I have attached a schematic drawing (pictured above) of how my Albacore is rigged. It is very simple and I just copied the rigging from another Albacore in the marina. I already had 3 of the blocks when I bought the boat 2nd hand - so did not want to do anything fancy - just get it going. Plus this rigging method does not take up a lot of space compared to other rigging methods I have seen on Albacores.

I have shortened the tiller (replaced the original Aluminium tiller with a home-made wooden tiller) so I can be further back in the boat without having to do acrobatics during a tack or jibe. On the tiller, I have installed both an Auto Releasing Cleat and an extra V cleat in case the Auto Releasing Cleat stops working reliably. (I also have this style of backup with the centerboard Auto Releasing Cleat - by having another ClamCleat using Shock-Cord)

If you have a swing keel/center board - and a kick up rudder - you might like to look into getting Auto Releasing Cleats. They are absolutely wonderful and limits the risk of giving your crew and boat injuries if you hit some shallows. The Ottawa river is quite a few feet lower than usual this Fall and we have been hitting sand and rocks quite a bit over the last few weeks. But due to the auto releasing cleats, there is no big drama.

Re the jib and my single handling setup: The reason for jib cleats near the main sheet is that I can release the jib without having to let go of the mainsheet: as letting go of the mainsheet while setting the jib is an easy cause of turtling the boat. This did not work as there was too much friction. And have changed to swivel cleats on the port and starboard sides.

For single handling, I just use a main sail, no jib. For heavier winds, I use the smaller firefly sail.

For social and comfort sailing (2006 season), have purchased a Crew Saver 40 liter Mast Float to stop/limit turtling: on two occassions when capsize occured, the Albacore did not turtle due to the mast float. To minimize tangling on setup, the main sail is raised first, then the Mast Float, then the jib.


Description

Albacore with CrewSaver 40 litre mast float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver 40 litre mast float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

  • Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

Big bucket with safety gear - all tethered.  Big bucket needed for bailing if Alabcore capsizes. But also needs to be tethered that is does not float or sink away during a capsize. Big bucket with safety gear - all tethered.  Big bucket needed for bailing if Alabcore capsizes. But also needs to be tethered that is does not float or sink away during a capsize.

  • Big bucket with safety gear - all tethered. Big bucket needed for bailing if Alabcore capsizes. But also needs to be tethered that is does not float or sink away during a capsize.

Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

  • Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

  • Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

  • Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

  • Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

CrewSaver 40 litre mast float hoisted on top of the Albacore Mast CrewSaver 40 litre mast float hoisted on top of the Albacore Mast

  • CrewSaver 40 litre mast float hoisted on top of the Albacore Mast

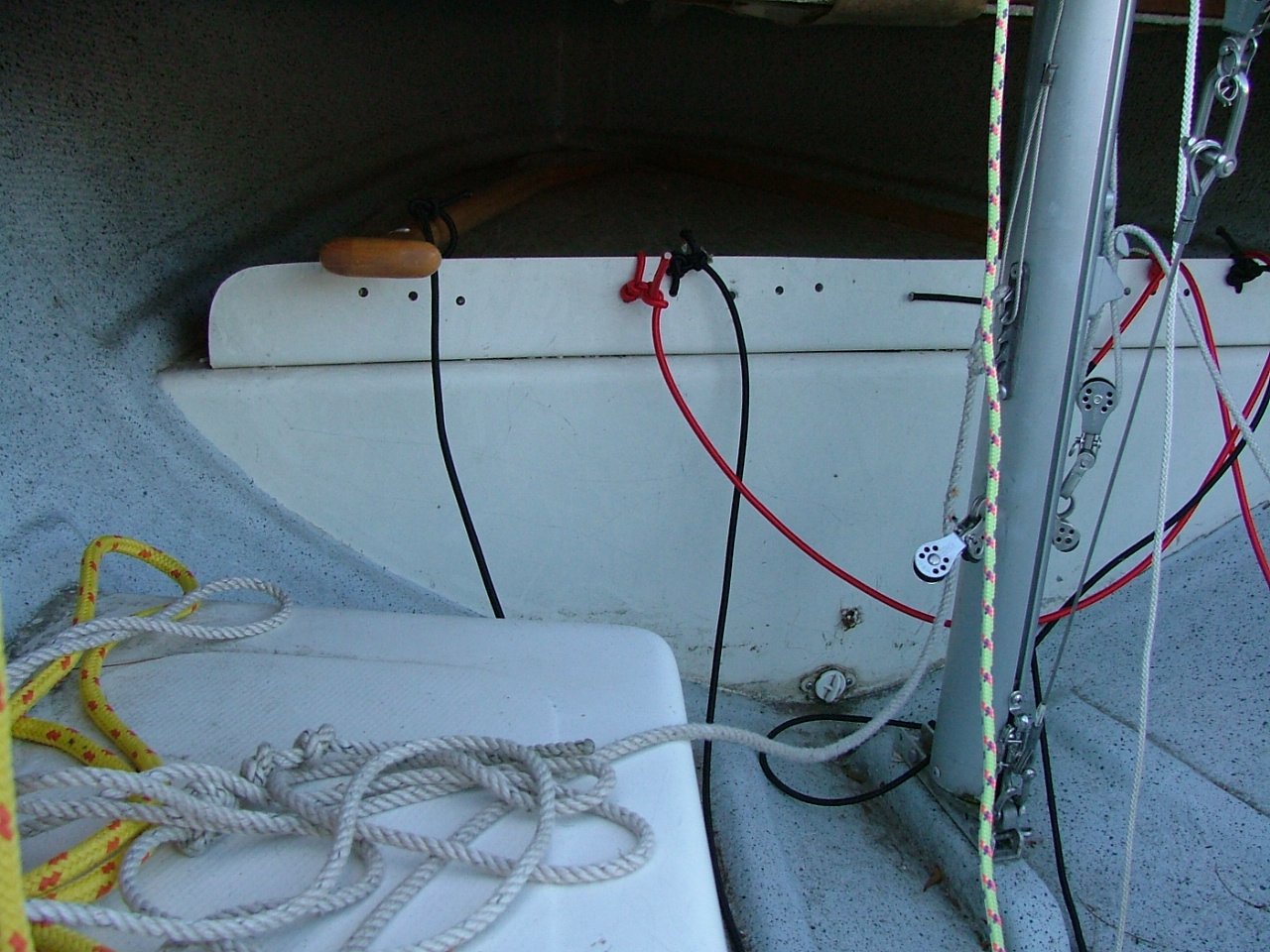

Inside of Albacore, tethered big bucket with safety gear not present as bucket was being used to bail someone else's Albacore on the beach

  • Inside of Albacore, tethered big bucket with safety gear not present as bucket was being used to bail someone else's Albacore on the beach

360 degree swivel cleat and clam cleat with fairlead.  In high winds, crew prefers to use the clam cleat as it is easier to quickly uncleat.

  • 360 degree swivel cleat and clam cleat with fairlead. In high winds, crew prefers to use the clam cleat as it is easier to quickly uncleat.

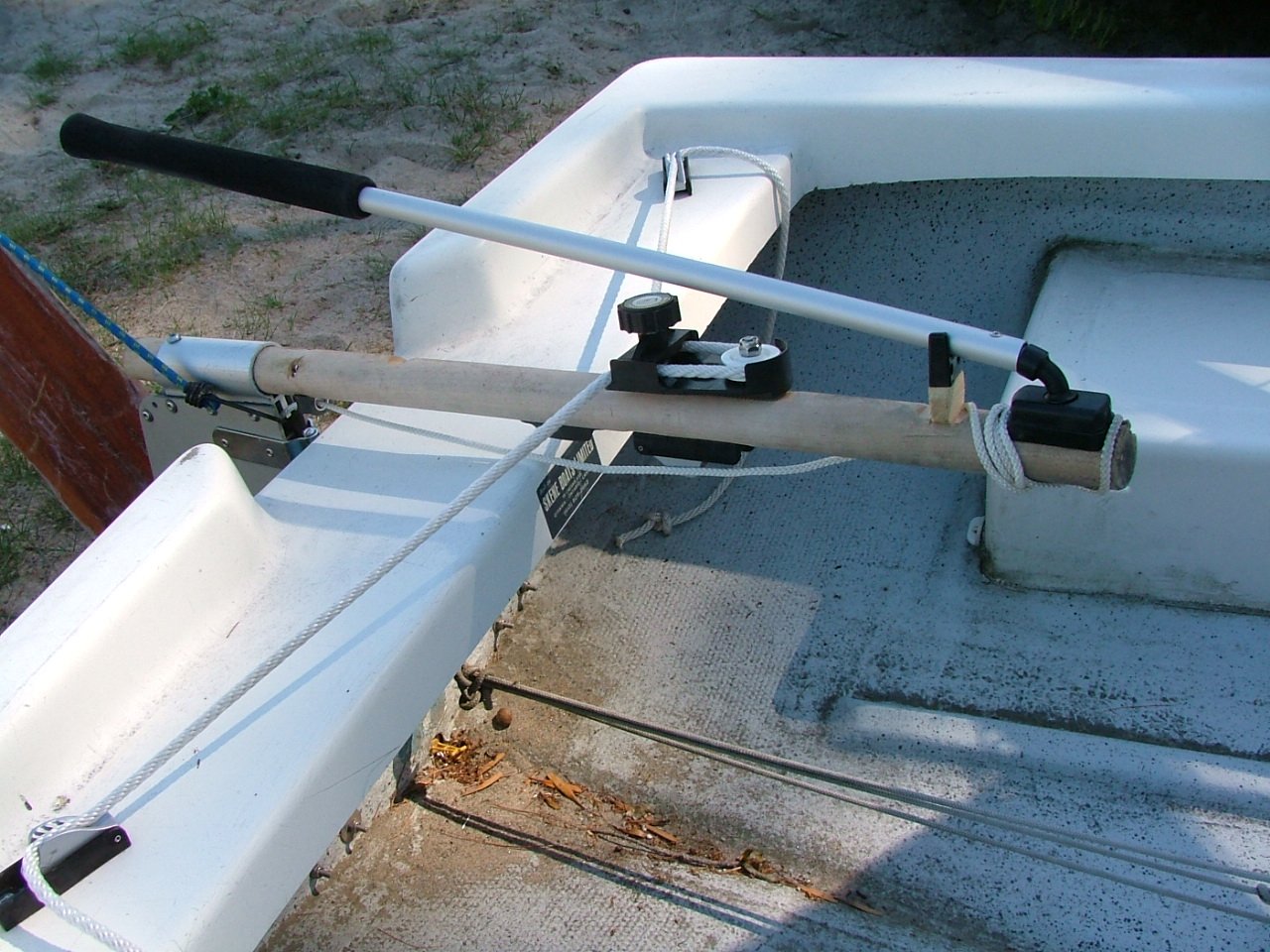

Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller. Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller.

  • Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller.

Port recovery line: installed in case of capsize or turtling. Starboard recovery line: installed in case of capsize or turtling.

  • Port recovery line: installed in case of capsize or turtling.
  • Starboard recovery line: installed in case of capsize or turtling.

Simple boomvang cleat

  • Simple boomvang cleat

Mastfloat hoist cleats and cunningham cleat Mast retainer

  • Mastfloat hoist cleats and cunningham cleat
  • Mast retainer

Paddle tethered and stored Praddle (one-armed paddle for the helmsman) - tethered

  • Paddle tethered and stored
  • Praddle (one-armed paddle for the helmsman) - tethered

Floating safety line ready for use

  • Floating safety line ready for use

Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller. Flow-Max Ball Scuppers (large) instead of the horrible default Albacore 'flaps'. Attachment for hiking straps.

  • Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller.
  • Flow-Max Ball Scuppers (large) instead of the horrible default Albacore 'flaps'. Attachment for hiking straps.

Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, Holt-Allen tiller extension and CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller. Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, Holt-Allen tiller extension and CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller.

  • Home made tiller (shortened, for easy tacks and jibes when sitting near the rear of the boat), with Davis Tiller Tamer, Holt-Allen tiller extension and CL257 Auto-release Racing Mini Clamcleat and backup V-cleat on the tiller.

Centerboard has a CL257 Auto-release Racing Mini Clamcleat with dinghy braid, as well as a backup Clamcleat with Shockcord Centerboard has a CL257 Auto-release Racing Mini Clamcleat with dinghy braid, as well as a backup Clamcleat with Shockcord

  • Centerboard has a CL257 Auto-release Racing Mini Clamcleat with dinghy braid, as well as a backup Clamcleat with Shockcord

Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

  • Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

  • Albacore with CrewSaver Mast Float (always hoisted irrespective of wind strength), and Firefly main sail for high wind conditions

Albacore on dolly ready to launch Albacore on dolly ready to launch

  • Albacore on dolly ready to launch

Inside of Albacore, tethered big bucket with safety gear not present as bucket was being used to bail someone else's Albacore on the beach Simple outhaul for boom

  • Inside of Albacore, tethered big bucket with safety gear not present as bucket was being used to bail someone else's Albacore on the beach
  • Simple outhaul for boom

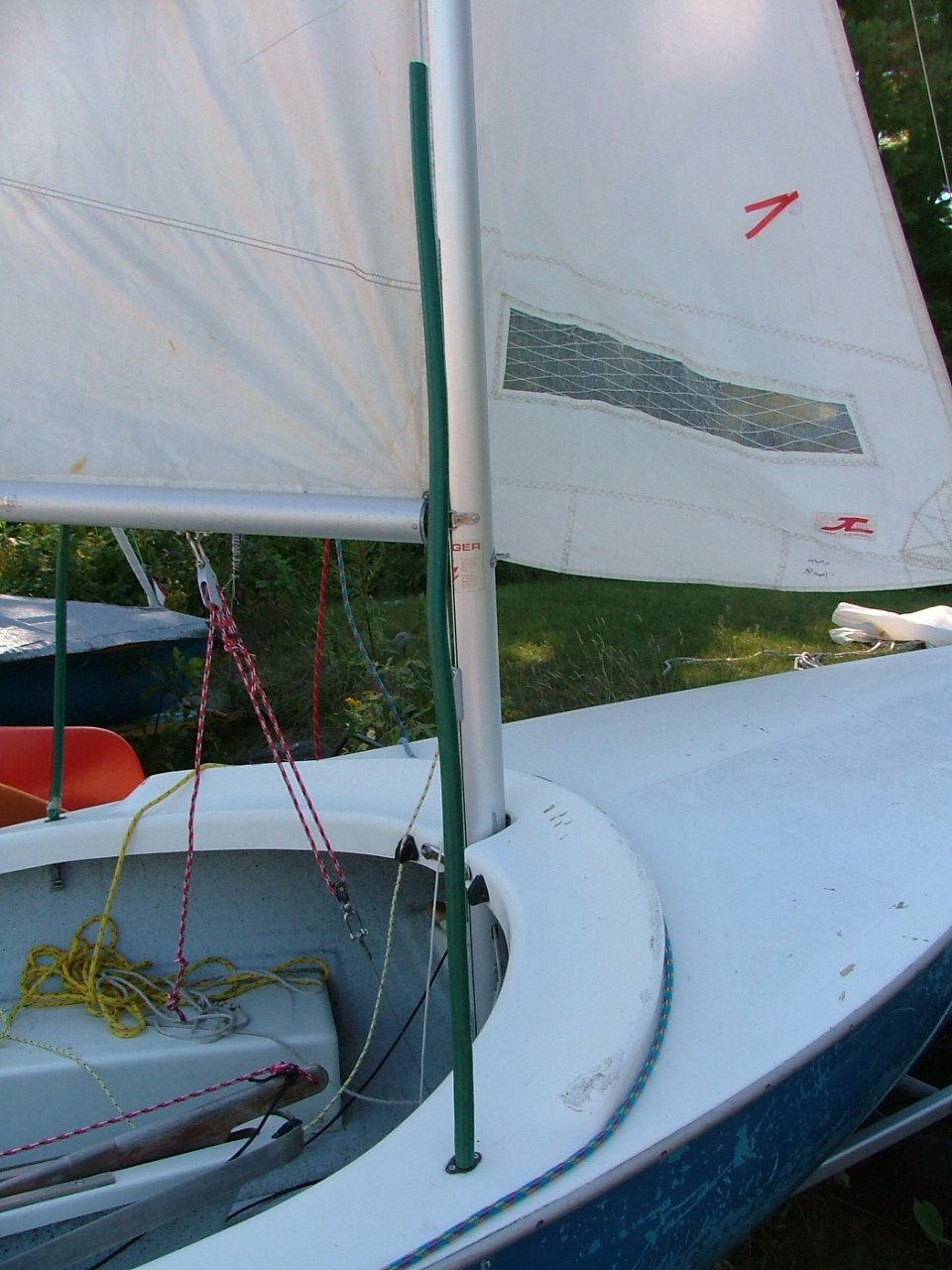

Garden hose over stay for easy handling by crew. Jib downhaul and garden hose over stay for easy handling by crew.

  • Garden hose over stay for easy handling by crew.
  • Jib downhaul and garden hose over stay for easy handling by crew.

Jib Halyard / wire-Rope Halyard on the port-side, and rigged main halyard on the starboard side using CL218MK1 Port Side Entry Clamcleat.  Main halyard block has extra shackle so halyard does not wear down the CL218MK1 Port Side Entry Clamcleat when raising the Main sail Jib Halyard / wire-Rope Halyard on the port-side, and rigged main halyard on the starboard side using CL218MK1 Port Side Entry Clamcleat.  Main halyard block has extra shackle so halyard does not wear down the CL218MK1 Port Side Entry Clamcleat when raising the Main sail Jib Halyard / wire-Rope Halyard on the port-side, and rigged main halyard on the starboard side using CL218MK1 Port Side Entry Clamcleat.  Main halyard block has extra shackle so halyard does not wear down the CL218MK1 Port Side Entry Clamcleat when raising the Main sail

  • Jib Halyard / wire-Rope Halyard on the port-side, and rigged main halyard on the starboard side using CL218MK1 Port Side Entry Clamcleat. Main halyard block has extra shackle so halyard does not wear down the CL218MK1 Port Side Entry Clamcleat when raising the Main sail

Front wheels installed in 2007 for Seitech launching dolly, safety line also secures the dolly to the boat when on the beach. Front wheels installed in 2007 for Seitech launching dolly, safety line also secures the dolly to the boat when on the beach.

  • Front wheels installed in 2007 for Seitech launching dolly, safety line also secures the dolly to the boat when on the beach.

Inside the Albacore, with big bucket with safety gear - all tethered.

  • Inside the Albacore, with big bucket with safety gear - all tethered.
